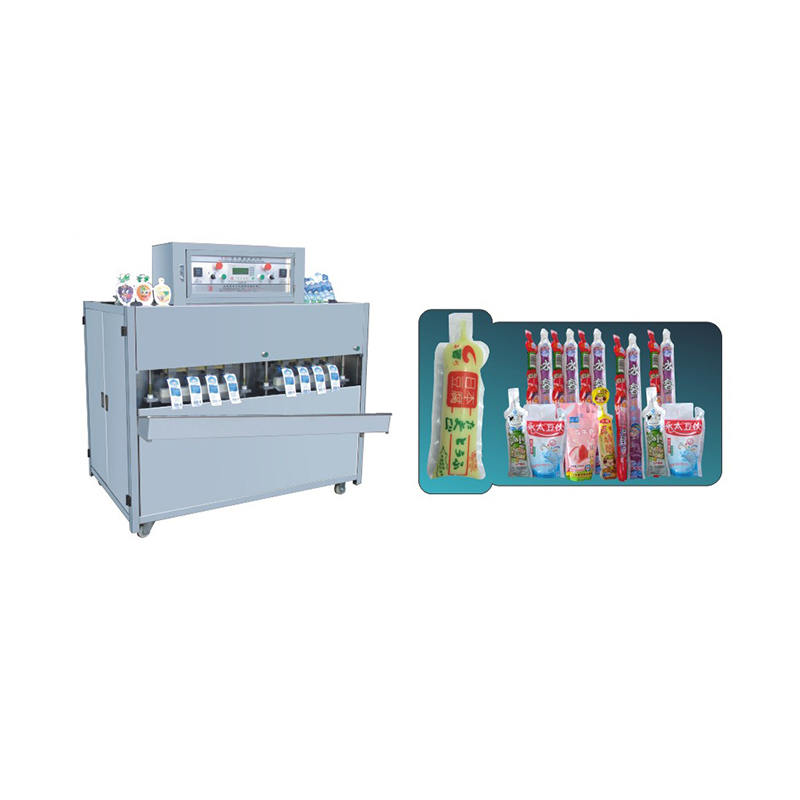

Plastic bag filling sealing machine
Origin： Shantou，Guangdong ，China
MOQ: 1 SET
Delivery time: 20-25working days
Price terms: EXW, FOB , CIF
Payment terms: T/T , Western union,LC or other payment
Warranty: 12 month
Application：
This machine is suitable for filling and sealing different drinks, such as juice, sucking jelly, japan tofu, mineral water and jelly juice etc.
The machine is suitable for different shape and volume bags. We can design different needle, filling and sealing structure, according to customers' demand.
Characteristics:
This machine work automatically from filling, pressing bag, sealing and discharge bag , except putting bag manually. Filling full, easy operation and sealing tight.
Technical Parameter
| Model |
SD-8( 8 nozzles) |
| Filling volume | (adjustable）30-300ml |
| Power using | 220V |
| Heat equipment | 0.3kw/h |
| Air pressure using | 0.5Mpa-0.7Mpa |
| Max air consumption | 0.30m³/min(external air source) |
| Dimension | 1700×1100×1800 (L×W×H) |
| Weight | Approx.400kg |
| Productivity | 2000-2500bags/h |
| Model |
SD-4(4 nozzles) |
| Filling volume | (adjustable）30-300ml |
| Power using | 220V |
| Heat equipment | 0.3kw/h |
| Air pressure using | 0.5Mpa-0.7Mpa |
| Max air consumption | 0.30m³/min(external air source) |
| Dimension | 1200×1000×1700 (L×W×H) |
| Weight | Approx.250kg |
| Productivity | 1000-1500bags/h |
