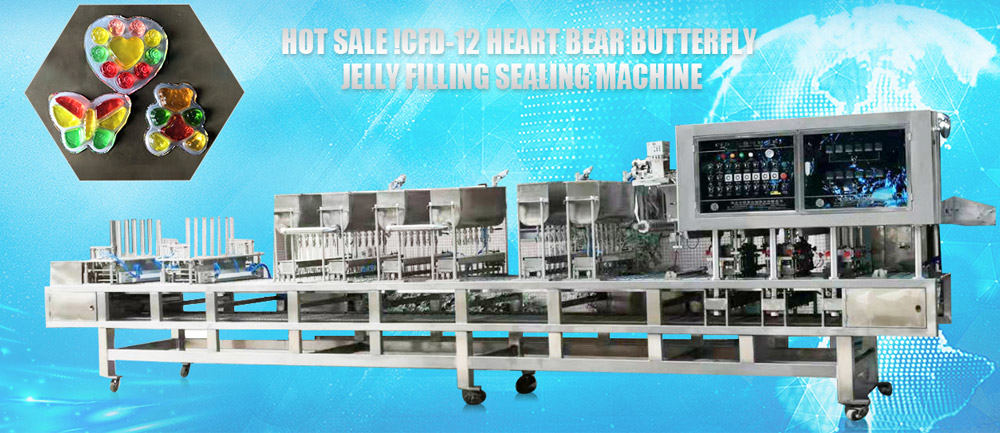

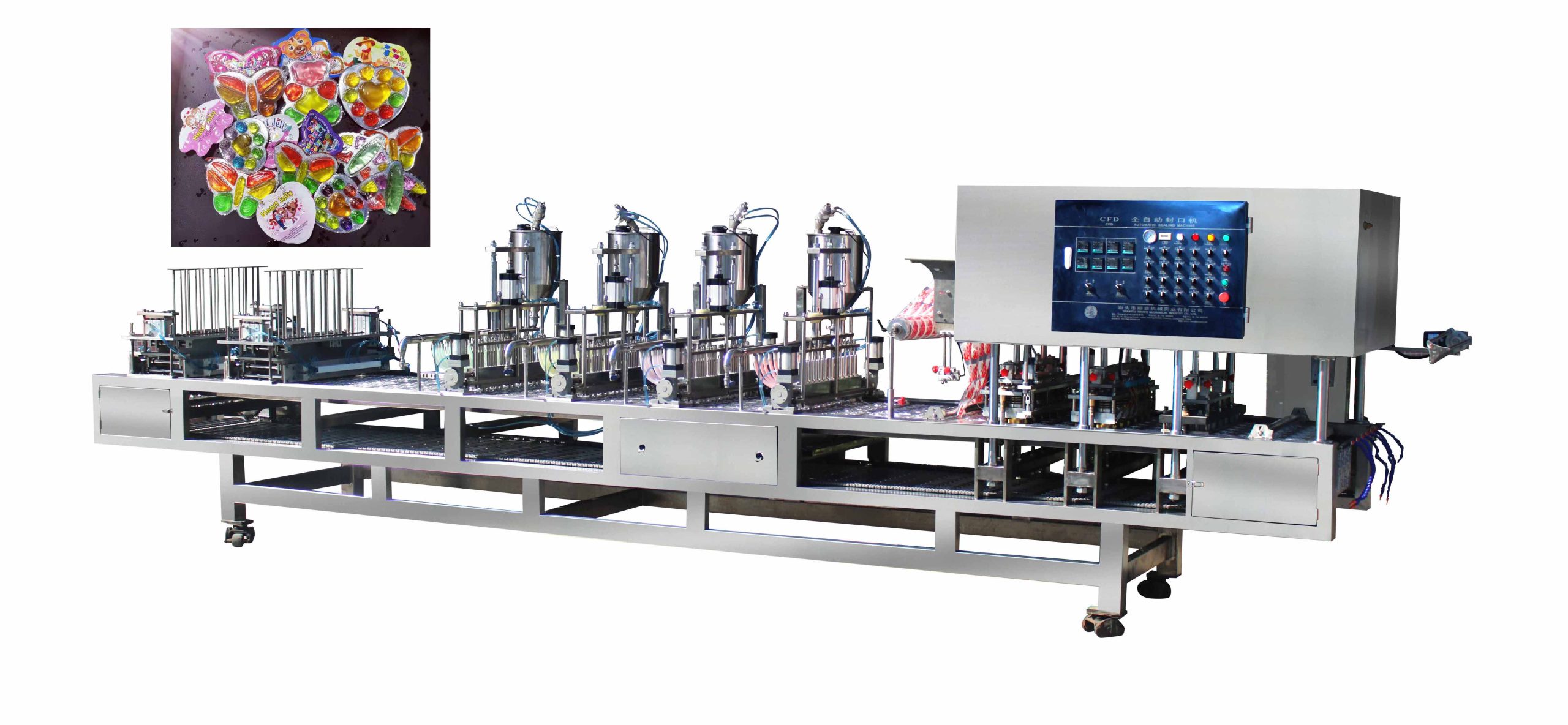

CFD-12 heart, butterfly, teddy bear jelly filling sealing machine
Origin： Shantou，Guangdong ，China
MOQ: 1 SET
Delivery time: 40 working days
Price terms: EXW, FOB , CIF
Payment terms: T/T , Western union,LC or other payment
Warranty: 12 month
Performance Characteristics
1. This machine is suitable for filling and sealing cup with jelly。
2. Electric and pneumatic combined driving are used, resulting in stable driving in order to save man power and reduce cost. Supply of cups, filling , sealing, trimming, output of products and take -up of waste film are fully automatic.
3. High efficiency, 12 cups can be filled, sealed, and trimmed at the same time in the machine.
4. Revision device of photoelectric sensors are installed in the machine to auto revise the positive of sealing film through detection of color mark, assuring the accurate position of the sealing pattern.
5. Hot sealing device, tight sealing, and absolutely reliable quality.
6. mix date printer according to customer's demand.
Technical Parameter
| Model | CFD12 |
| Speed | 10000 cups/h |
| volume | adjustable |
| Power consumption | 380V/50Hz 3 phase 4 lines |
| Max air consumption | 1.0m³/min |
| Electric consumption | 12kw |
| Machine Dimension | Approx.7000*1200*1680mm |
| Weight | Approx 2500kg |
